DIN 48204 standard Overhead Line ACSR 125/30 95/15mm2 70/12 50/8mm2 Conductor

Price:	0.5 USD
Payment Terms:	T/T,L/C
Place of Origin:	Henan, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: ACSR Conductor

Production Capacity: 5000KM/Month

Delivery Date: 40 days

Type: Bare

Conductor Material: Aluminum

Brand Name: TANO Cable

Means of Transport: Ocean

Packing: Wooden drum

Application: Overhead

Insulation Material: Others

Conductor Type: Stranded

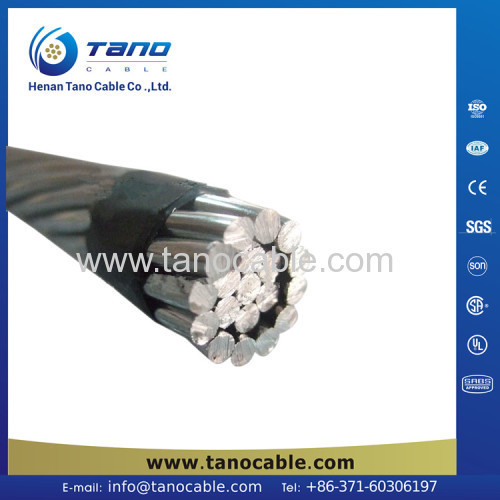

1. Aluminum Conductor Steel Reinforced---ACSR
2. DIN 48204

Aluminum Conductor Steel reinforced (ACSR) Cables

Application

ACSR conductors are widely used for electrical power transmission over long distances,
since they are ideal for long overhead lines spans. They are also used as a messenger for
supporting overhead electrical cables.

Standard

Basic design to BS 215-2 / BS EN 50182 / IEC 61089 / ASTM B 232/B 232M / DIN 48204 /
JIS C 3110 standards

Construction

ACSR conductors are formed by several wires of aluminium and galvanized steel, stranded
in concentric layers. The wire or wires which form the core, are made of galvanized steel
and the external layer or layers, are of aluminium. Galvanized steel core consist normally
of 1, 7 or 19 wires. The diameters of steel and aluminium wires can be the same, or
different.
By varying the relative proportions of aluminium and steel, the required characteristics for
any particular application can be reached. A higher U. T. S. Can be obtained, by increasing
steel content, and a higher current carrying capacity by increasing aluminium content.


linear Expansivity	Aluminium: 23 x10 (°C)
	Galvanised Steel: 11.5 x10 (1/°C)

Service conditions

Ambient Temperature	-5°C - 50°C
Wind Pressure	80 – 130kg/m2
Seismic Acceleration	0.12 - 0.05g
isokeraunic level	10 – 18
relative Humidity	5 – 100%

Construction Parameters

DIN 48204

Nominal Sectional area		Sectional area			stranding		overall diameter	weight	Breaking Load	Electrical Resistance@20°	current Rating *
Nominal Sectional area		Sectional area			AL	steel
Al	steel	AL	steel	Total	AL	steel
mm2	mm2	mm2	mm2	mm2	No.xmm	No.xmm	mm	kg/km	KN	Ω/Km	A
16	2.5	15.27	2.54	17.8	6/1.80	1/1.80	5.4	62	5.81	1.8793	83
25	4	23.86	3.98	27.8	6/2.25	1/2.25	6.8	97	9.02	1.2028	109
35	6	34.35	5.73	40.1	6/2.70	1/2.70	8.1	140	12.7	0.8353	136
44	32	43.98	31.67	75.7	14/2.00	7/2.40	11.2	373	45.46	0.6573	166
50	8	48.25	8.04	56.3	6/3.20	1/3.20	9.6	196	17.18	0.5946	168
50	30	51.17	29.85	81	12/2.33	7/2.33	11.7	378	44.28	0.5644	181
70	12	69.89	11.4	81.3	26/1.85	7/1.44	11.7	284	26.31	0.413	211
95	15	94.39	15.33	109.7	26/2.15	7/1.67	13.6	383	35.17	0.3058	254
95	55	96.51	56.3	152.8	12/3.20	7/3.20	16	714	80.2	0.2992	267
105*	75	105.67	75.55	181.2	14/3.10	19/2.25	17.5	899	106.69	0.2736	284
120	20	121.57	19.85	141.4	26/2.44	7/1.90	15.5	494	44.94	0.2374	297
120	70	122.15	71.25	193.4	12/3.60	7/3.60	18	904	98.16	0.2364	308
125	30	127.92	29.85	157.8	30/2.33	7/2.33	16.3	590	57.86	0.2259	308
150	25	148.86	24.25	173.1	26/2.70	7/2.10	17.1	604	54.37	0.1939	336
170	40	171.77	40.08	211.9	30/2.70	7/2.70	18.9	794	77.01	0.1682	369
185	30	183.78	29.85	213.6	26/3.00	7/2.33	19	744	66.28	0.1571	382
210	35	209.1	34.09	243.2	26/3.20	7/2.49	20.3	848	74.94	0.138	414
210	50	212.06	49.48	261.5	30/3.00	7/3.00	21	979	92.25	0.1363	420
230	30	230.91	29.85	260.8	24/3.50	7/2.33	21	874	73.09	0.1249	438
240	40	243.05	39.49	282.5	26/3.45	7/2.68	21.8	985	86.46	0.1188	453
265	35	263.66	34.09	297.8	24/3.74	7/2.49	22.4	998	82.94	0.1094	475
300	50	304.26	49.48	353.7	26/3.86	7/3.00	24.5	1233	105.09	0.0949	520
305	40	304.62	39.49	344.1	54/2.68	7/2.68	24.1	1155	99.3	0.0949	518
340	30	339.29	29.85	369.1	48/3.00	7/2.33	25	1174	92.56	0.0851	551
380	50	381.7	49.48	431.2	54/3.00	7/3.00	27	1448	120.91	0.0757	593
385	35	386.04	34.09	420.1	48/3.20	7/2.49	26.7	1336	104.31	0.0748	595
435	55	434.29	56.3	490.6	54/3.20	7/3.20	28.8	1647	136.27	0.0666	641
450	40	448.71	39.49	488.2	48/3.45	7/2.68	28.7	1553	120.19	0.0644	651
490	65	490.28	63.55	553.8	54/3.40	7/3.40	30.6	1860	152.85	0.059	689
550	70	549.65	71.25	620.9	54/3.60	7/3.60	32.4	2085	167.42	0.0526	737
560	50	561.7	49.48	611.2	48/3.86	7/3.00	32.2	1943	146.28	0.0514	744
680*	85	678.58	85.95	764.5	54/4.00	19/2.40	36	2564	209.99	0.0426	834
The items marked with "*" are not in our current product range and the details are for information only.
(*) Note: The values of current rating mentioned in above Table are based on wind velocity of 0.6 metre/second, solar heat radiation of 1200 watt/metre2, ambient temperature of 50° C & conductor temperature of 80°C.
